V-EDGE DUMP BUGGY

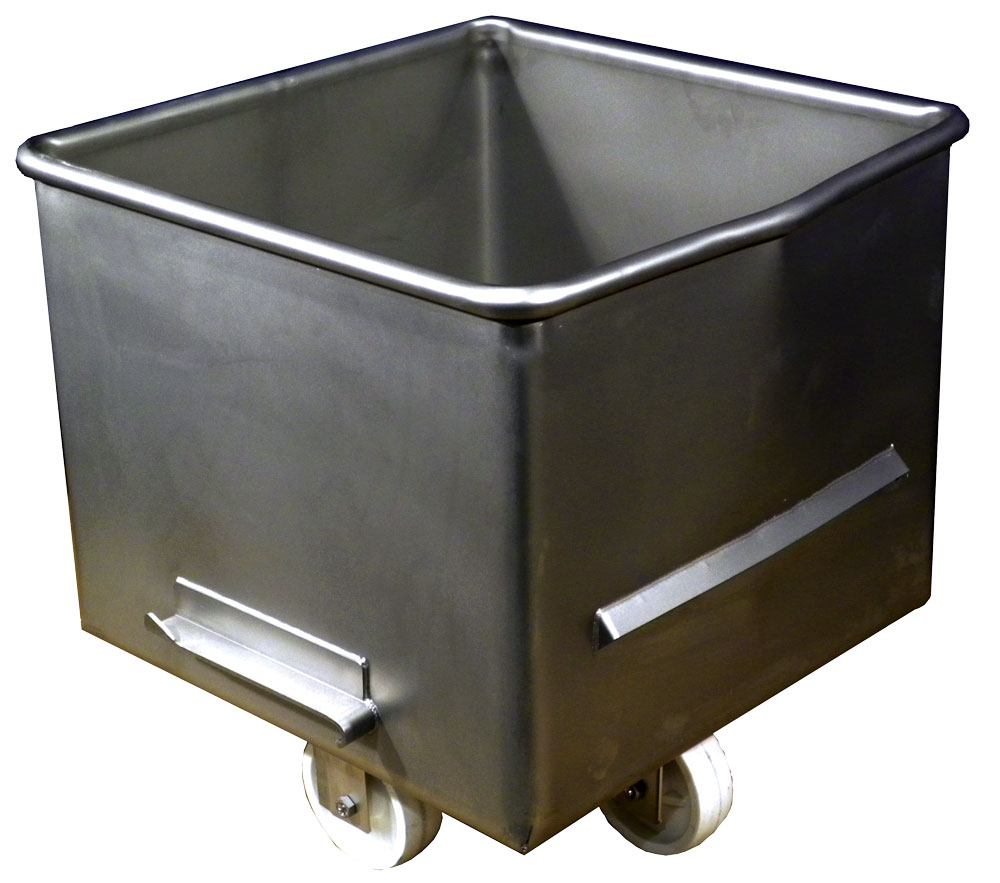

BG101041 400LB Dump Buggy - Click for expanded view

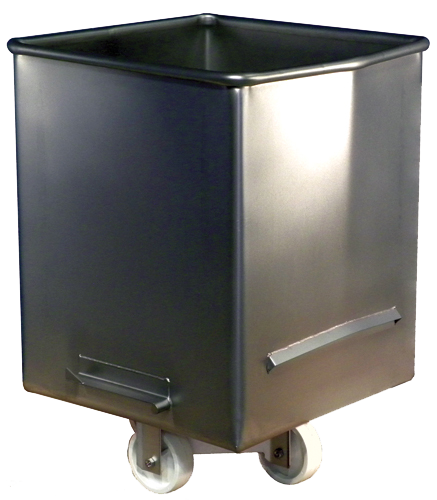

400 Lb Buggy		 BG101042 600LB Dump Buggy - Click for expanded view

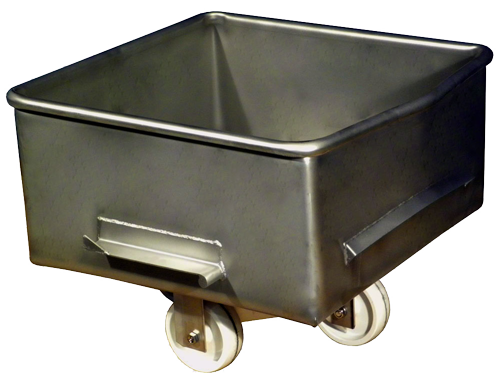

600 Lb Buggy		 BG101051 200 LB Dump Buggy - Click for expanded view
200 Lb Buggy
  Reinforced Bottom - Click for expanded view
Reinforced Bottom		 Replaceable
Axle with Zerk Fitting - Click for expanded view
Axle
Delrin Bushing - Click for expanded view
Bushing		 Wheel with Zerk Fitting - Click for expanded view
Shown with Bar Rim		 400 # with Handle

Our Buggies fully welded construction includes a 1” rolled top rim that is reinforced with a internal solid aluminum rod for added strength and rigidity. The Heavy-duty T-304 Stainless Steel body construction includes a reinforced bottom and undercarriage that cross ties the four wheels together for added side to side and front to back strength as well as durability. Stainless Steel drip guards are standard and have closed ends to meet USDA Standards. Equipped with white poly wheels 6" x 2", a replaceable delrin bushing and a T-304 Stainless Steel axle equipped with zerk fitting for applying grease.

Available options include:

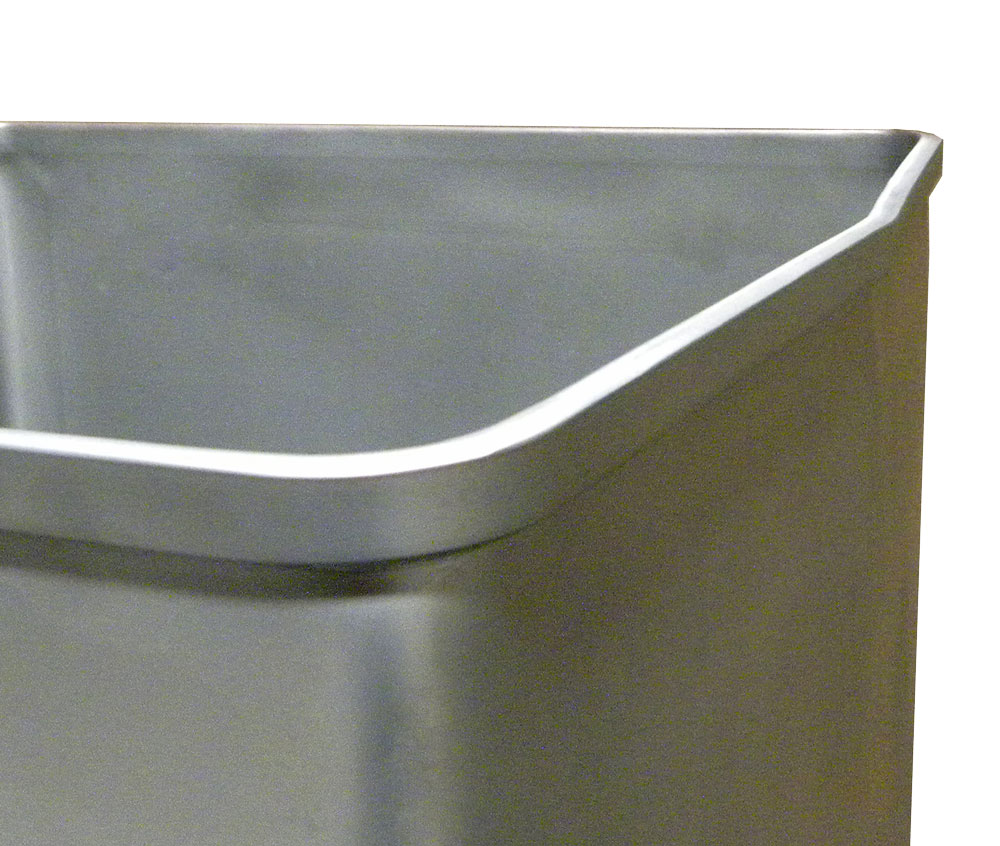

* Bar edge top rim. * T-Style Push handle.
* Heavier gauge material. * Different dimensions.
* Solid Blue Polyurethane Wheels * Perforated body.
Contact Us For Custom Made Sizes

Buggy capacity configuration overall dimension
length X width x height		 approximate shpg. wt. model no.
200 rolled rim, without handle 28" x 28" x 18" 58 lbs BG101051
400 rolled rim, without handle 28" x 28" x 28" 78 lbs BG101041

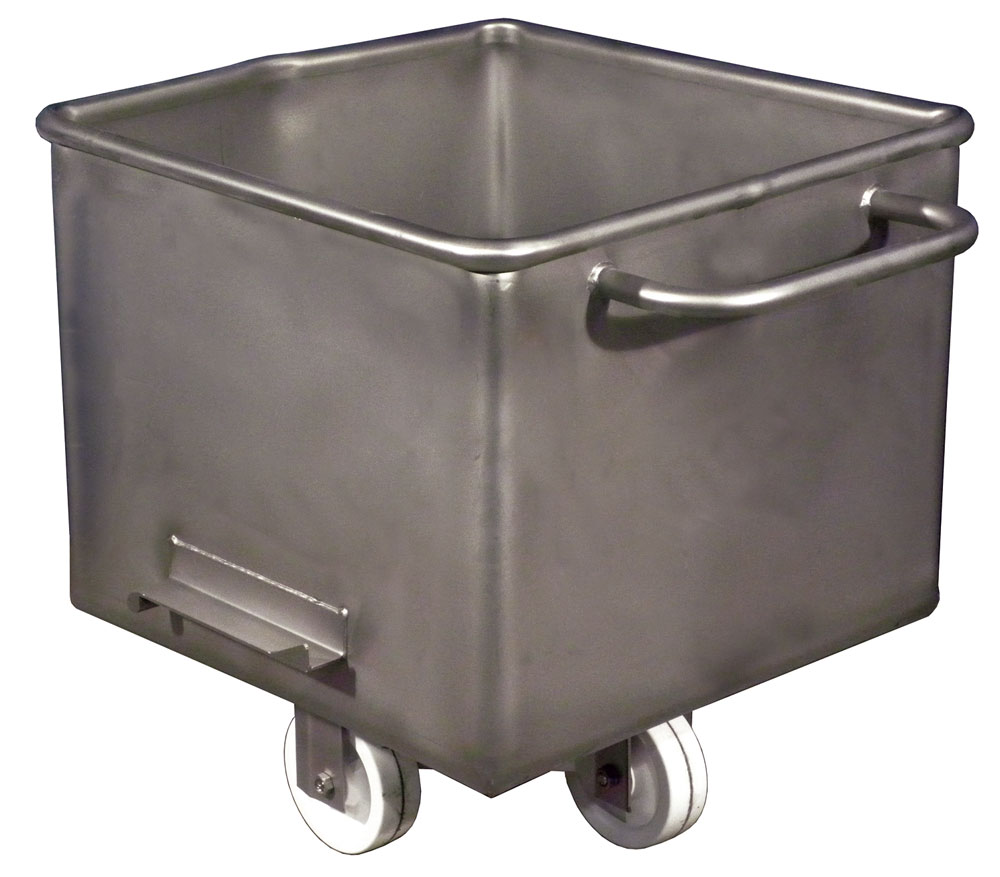

400 rolled rim, with handle 32" x 28" x 28" 80 Lbs BG101043
600 rolled rim, without handle 28" x 28" x 38" 98 lbs BG101042

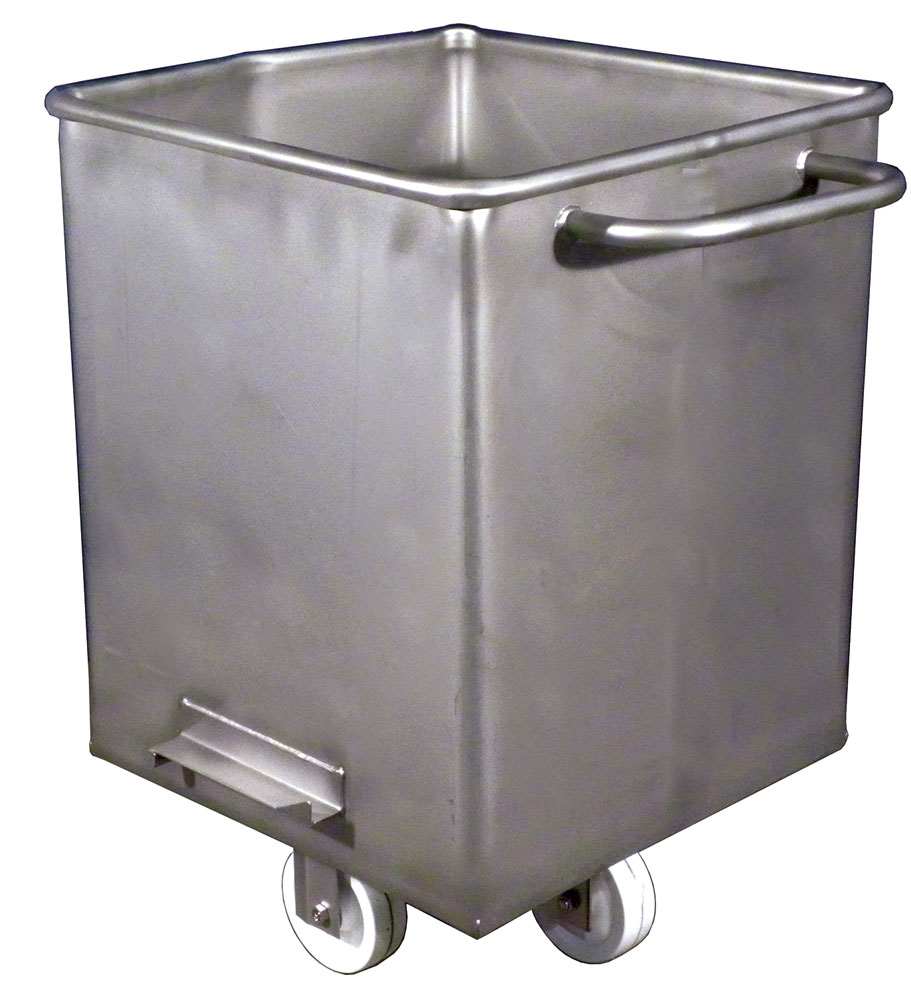

600 rolled rim, with handle 32" x 28" x 38" 100 lbs BG101048

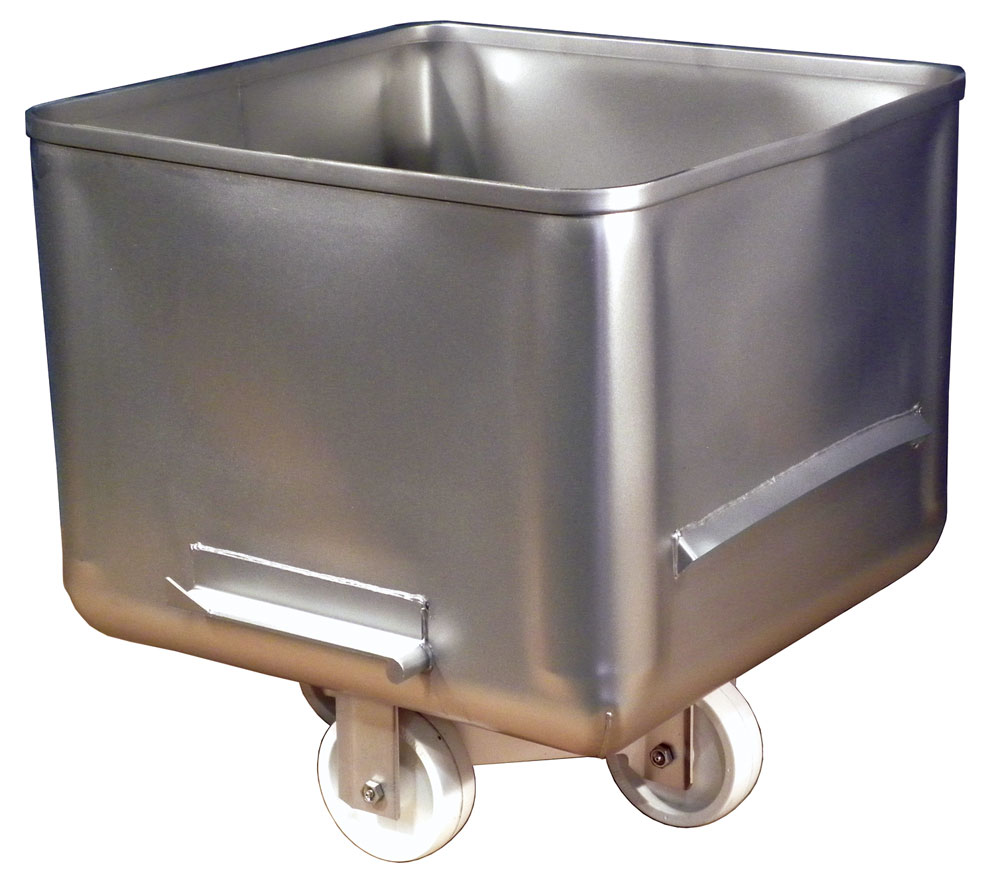

400 bar rim, without handle 28" x 28" x 28" 75 Lbs BG101044
400 bar rim, with handle 32" x 28" x 28" 77 LBS BG101045

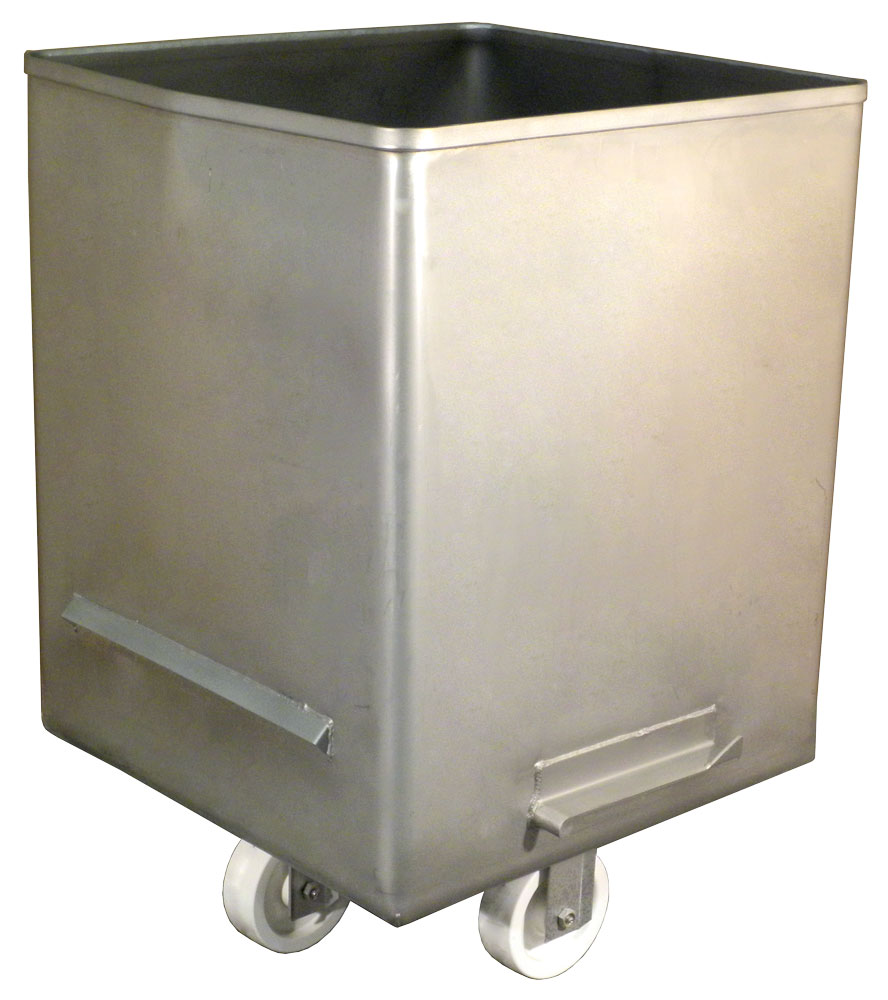

600 bar rim, without handle 28" x 28" x 38" 98 LBS BG101046
600 bar rim, with handle 32" x 28" x 38" 100 LBS BG101047
