20 PLATTER DOLLIES

These dollies come in two Styles:

End Load - Knock-Down (Ships UPS)
End Load - Fully Welded (Motor Freight)

Side Load - Knock Down (Ships UPS)
Side Load - Fully Welded (Motor Freight)

All dollies hold 18" x 26" Platters.
(Platters not included.)

Standard Features:

2-7/8" Spacing between platters.

Both Stainless Steel and Aluminum models are made from heavy wall 1" square tube.

Units are equipped with 5" swivel casters.
(2 with brake and 2 without brake.)

Knock-Down Model comes with tool needed for assembly.


Contact Us For Custom Made Sizes


 DL102018

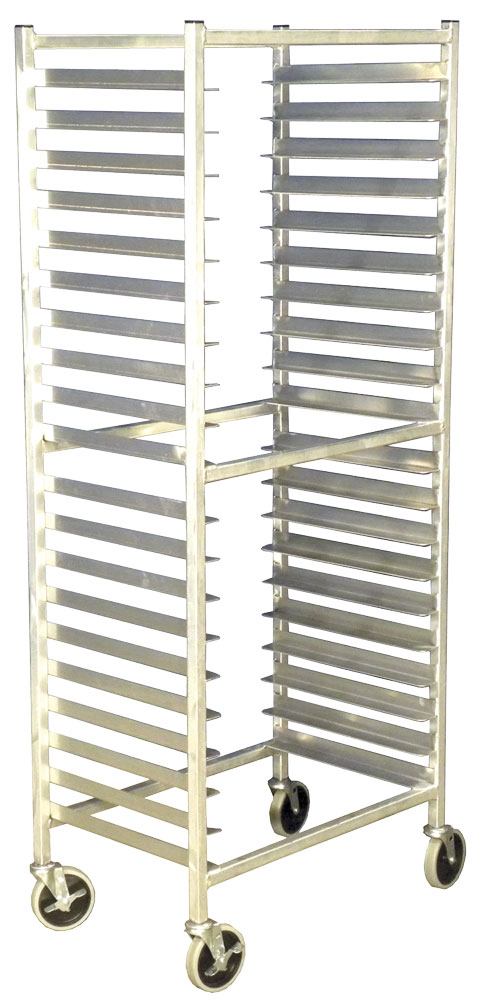

End Load FW Aluminum		 DL102019
Side Load KD Stainless Steel
platter capacity material and configuration overall dimension
length X width x height		 approximate shpg. wt. model no.

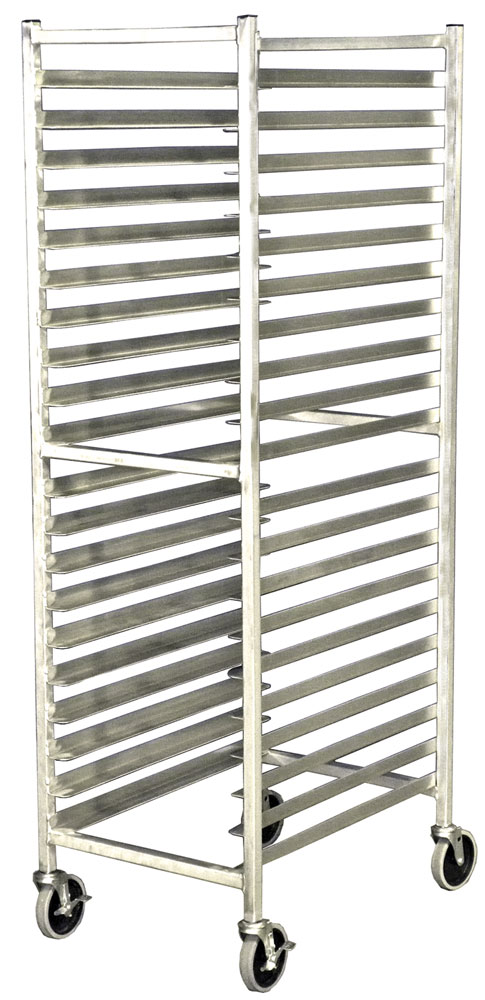

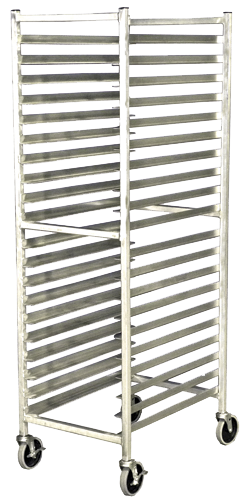

20 EL Aluminum, FW 28" x 20-1/4" x 69-1/2" 27 lbs DL102018

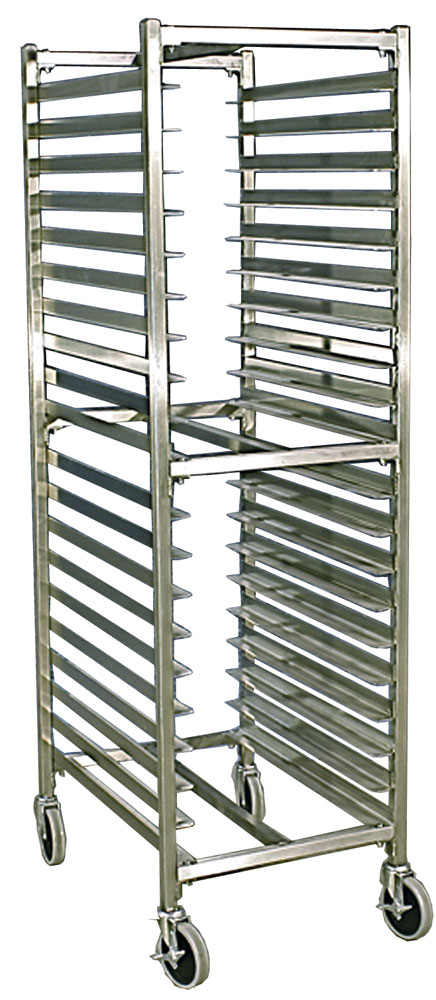

20 el STAINLESS, KD 28" x 20-1/4" x 69-1/2" 48 lbs DL101013
20 SL Aluminum, FW 20-1/4" x 28" x 69-1/2" 27 lbs dl102019
20 SL STAINLESS, KD 20-1/4" x 28" x 69-1/2" 48 lbs DL101014

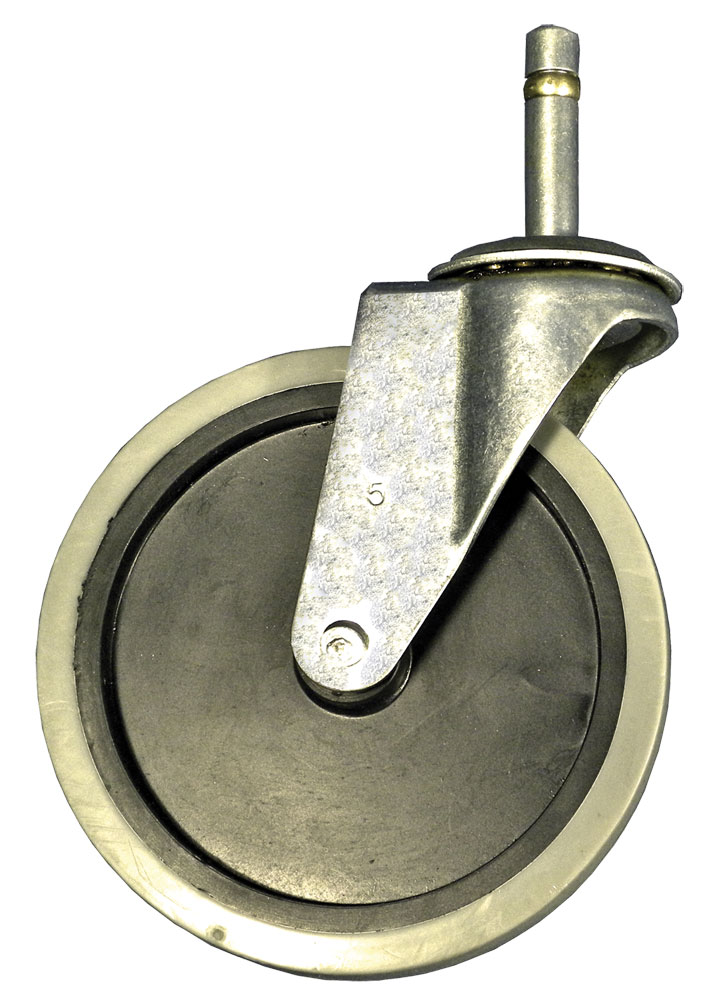

Caster Replacement 5" Without Brake 2 LBS WC203005

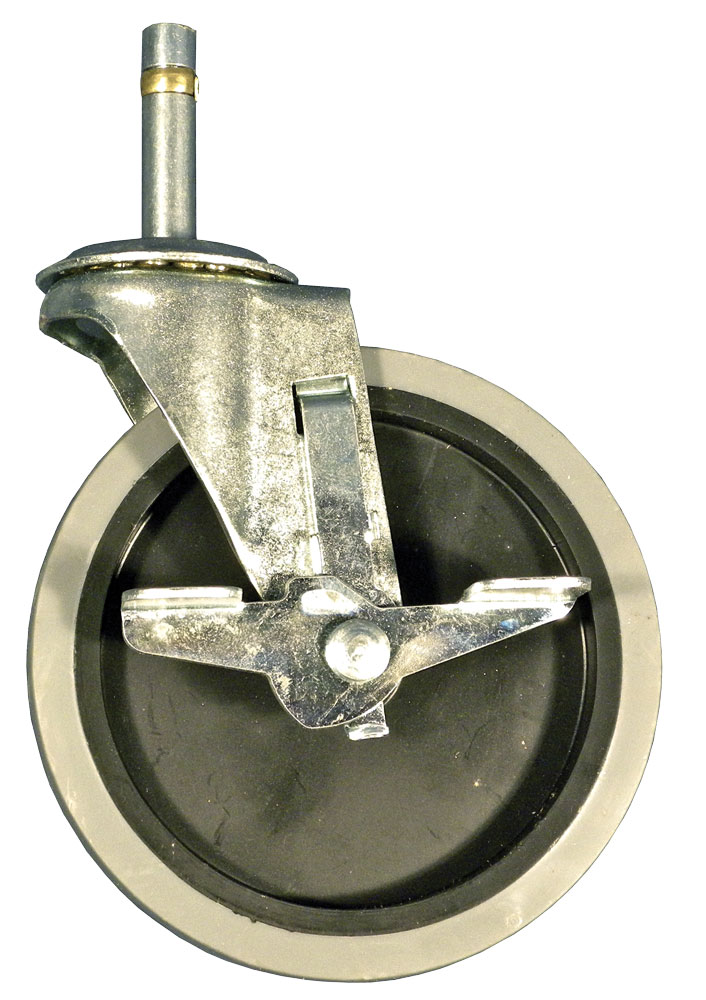

Caster Replacement 5" With Brake 2 LBS WC203006
Printable PDF literature on the 20 Platter Dollies - Click here.     20 Platter Dolly Literature Distributed     PDF Literature on Lander, Spreader & Tree Link to Adobe Reader
