TOTE DOLLIES

DL101046
6 Lug KD Stainless Steel

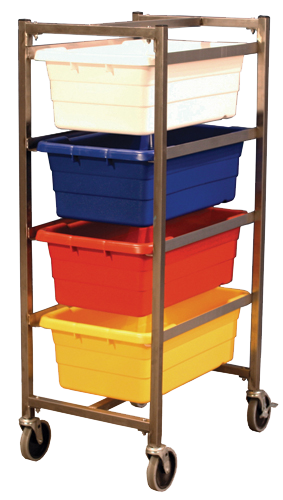

DL101008
4 Lug KD Stainless Steel

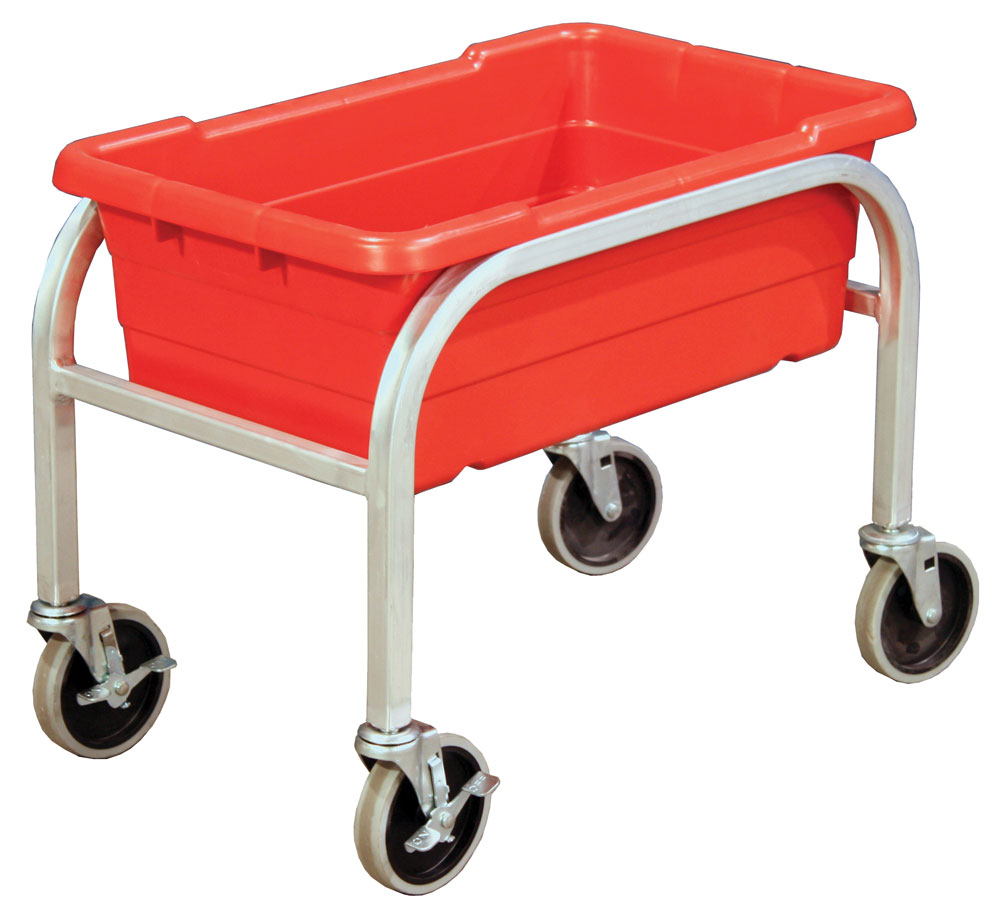

DL102006
Single Lug FW Aluminum

We've designed our Tote Dollies to be strong and lightweight; their principle use is for the transportation or storage of totes. Your choice of Fully Welded construction or Knock-Down models to save on shipping.

Standard Features:
Both aluminum and stainless steel models are made from heavy wall 1" square tube.
Units are equipped with 5" swivel casters. (2 with brake and 2 without brake)
All designed to accommodate 16" x 25" x 8-1/2" Tote. (Tote not included)
Knock-down models come with tool needed for assembly.

KD - Knock-Down Models - (Ship UPS)
FW - Full Welded Models - 2 & 4 Ship Truck

Contact Us For Custom Made Sizes

tote capacity material and configuration overall dimension
length X width x height
approximate shpg. wt. model no.
1 aluminum, fw 28-1/4" x 15-3/4" x 16" 13 lbs DL102006
1 Stainless, FW 24-5/16" x 18-1/4" x 16" 15 Lbs DL101044

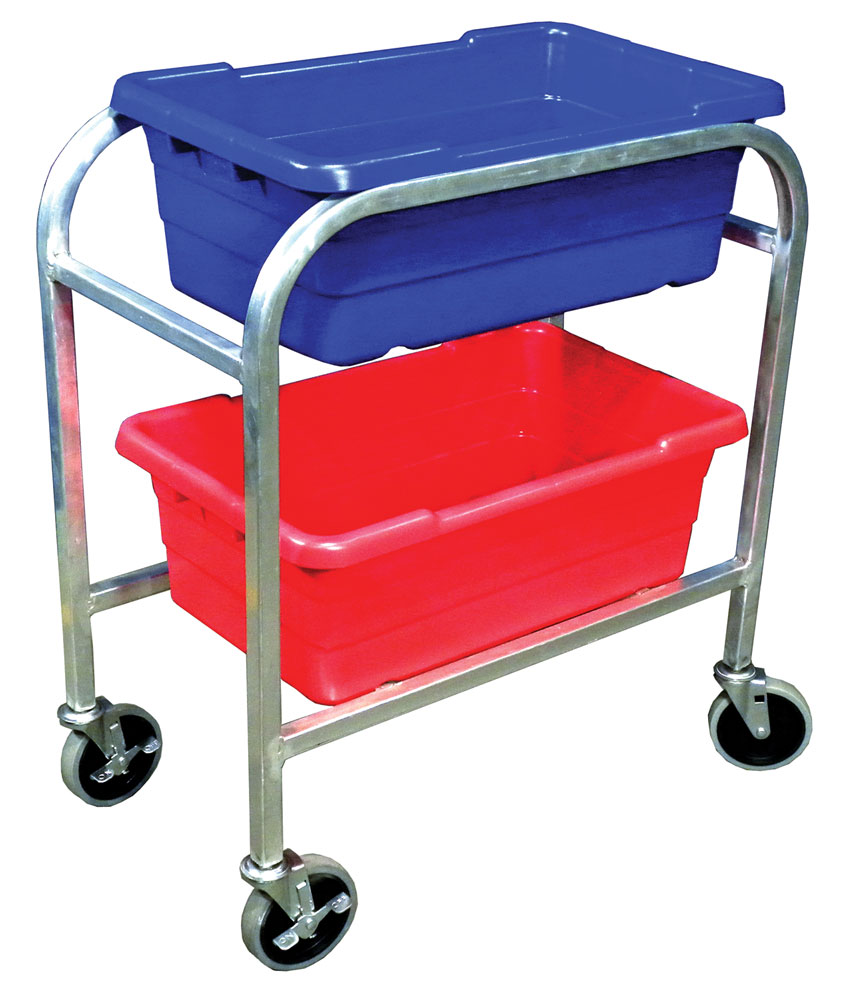

2 Aluminum, fw 28-1/4" x 15-3/4" x 33" 17 lbs DL102007

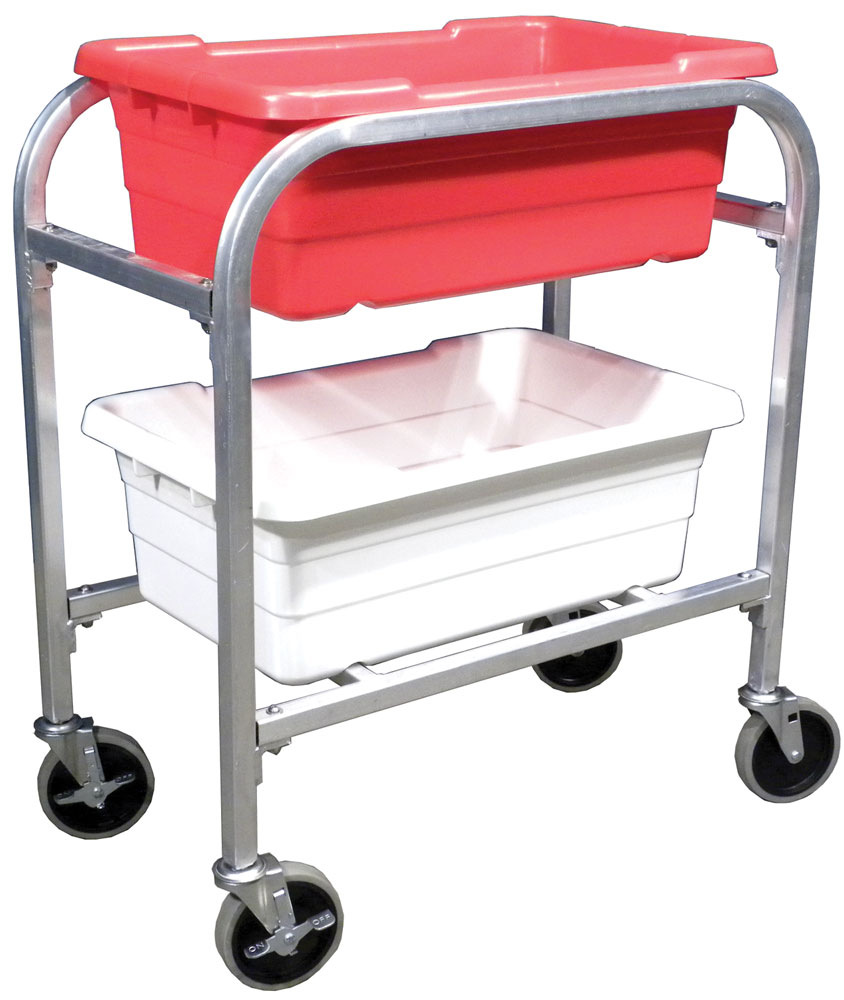

2 Aluminum, kd 28-1/4" x 15-3/4" x 33" 15 lbs DL102012
2 Stainless, FW 24-5/16" x 18-1/4" x 31" 23 lbs DL101039

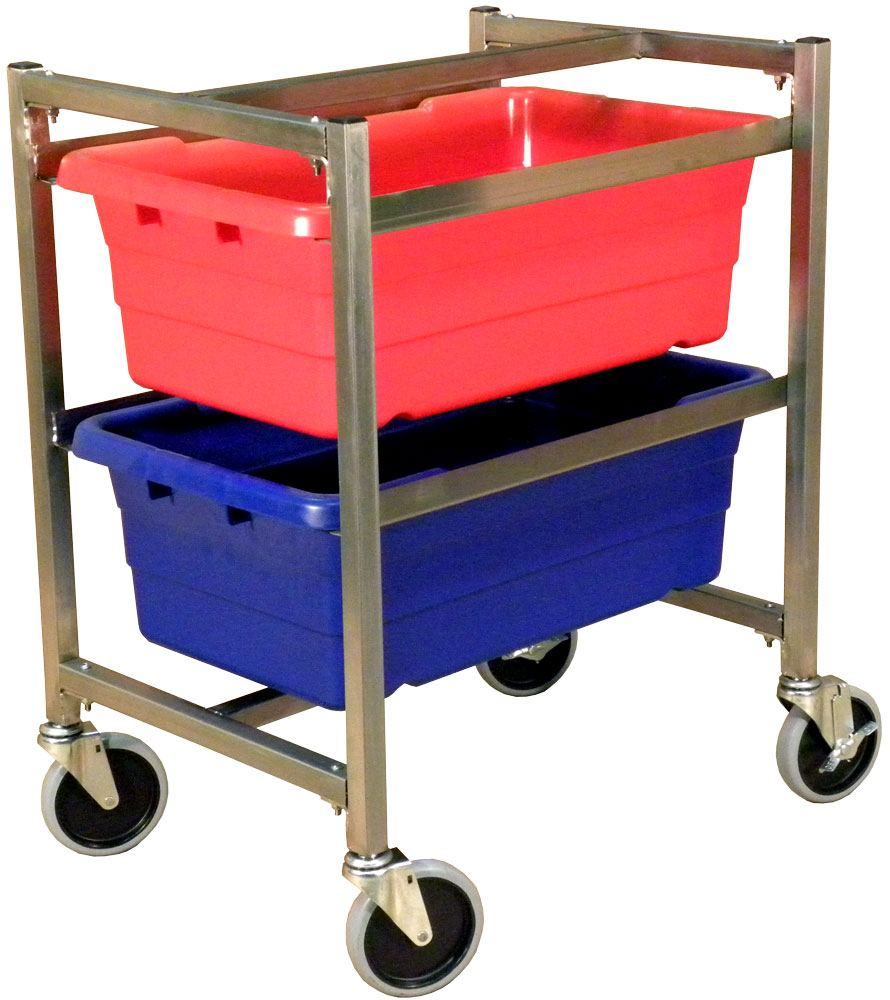

2 Stainless, KD 24-5/16" x 18-1/4" x 31" 21 lbs DL101007

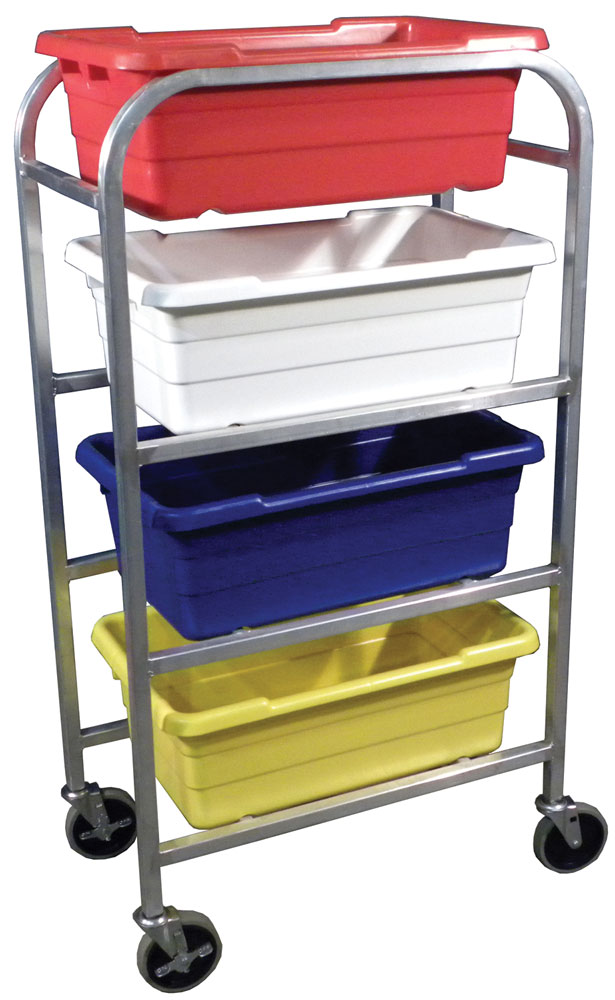

4 Aluminum, fw 28-1/4" x 15-3/4" x 52-1/2" 25 lbs DL102008
4 Aluminum, KD 28-1/4" x 15-3/4" x 52-1/2" 24 lbs DL102013
4 Stainless, FW 24-5/16" x 18-1/4" x 52-1/2" 32 lbs DL101047
4 stainless, kd 24-5/16" x 18-1/4" x 52-1/2" 31 lbs DL101008

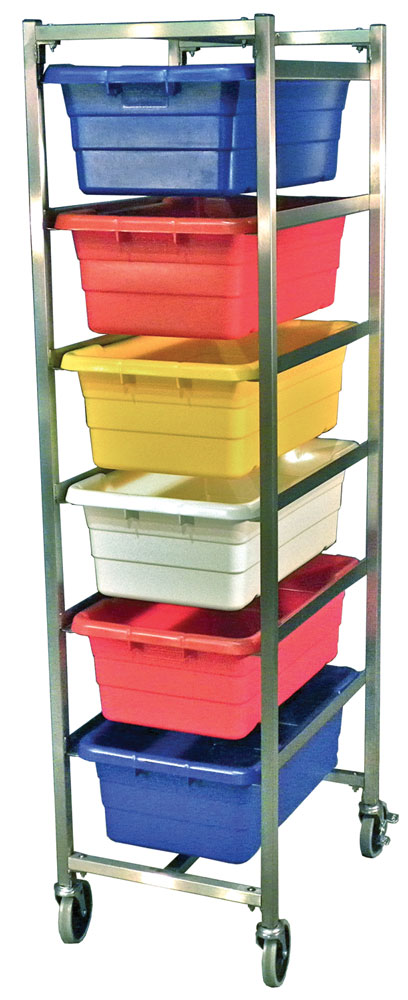

6 stainless, kd 24-5/16" x 18-1/4" x 70" 43 lbs dl101009
Caster Replacement 5" Without Brake 2 LBS WC203005
Caster Replacement 5" With Brake 2 LBS WC203006
