HEAD FLUSHING CABINET

Used in the process for cleaning out cattle and calves nostrils and mouths, this cabinet comes complete with a removable swivel hook, 6' of hose with fittings on each end and a special self-closing nozzle fitted with a 12" length of 3/8" stainless steel tube to reach the necessary areas.

The bottom of the cabinet slopes to a 4" diameter drain located approximately 3" above the floor. The cabinet is 66" tall overall and is constructed of T-304 Stainless Steel.



Contact Us For Custom Made Sizes


 Click for expanded view

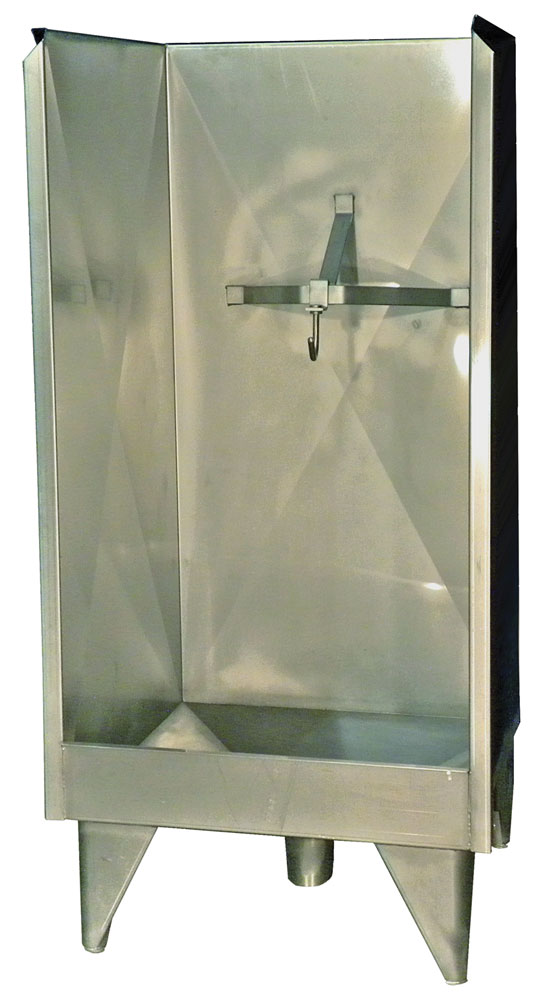

Head Flushing Cabinet

CB210001

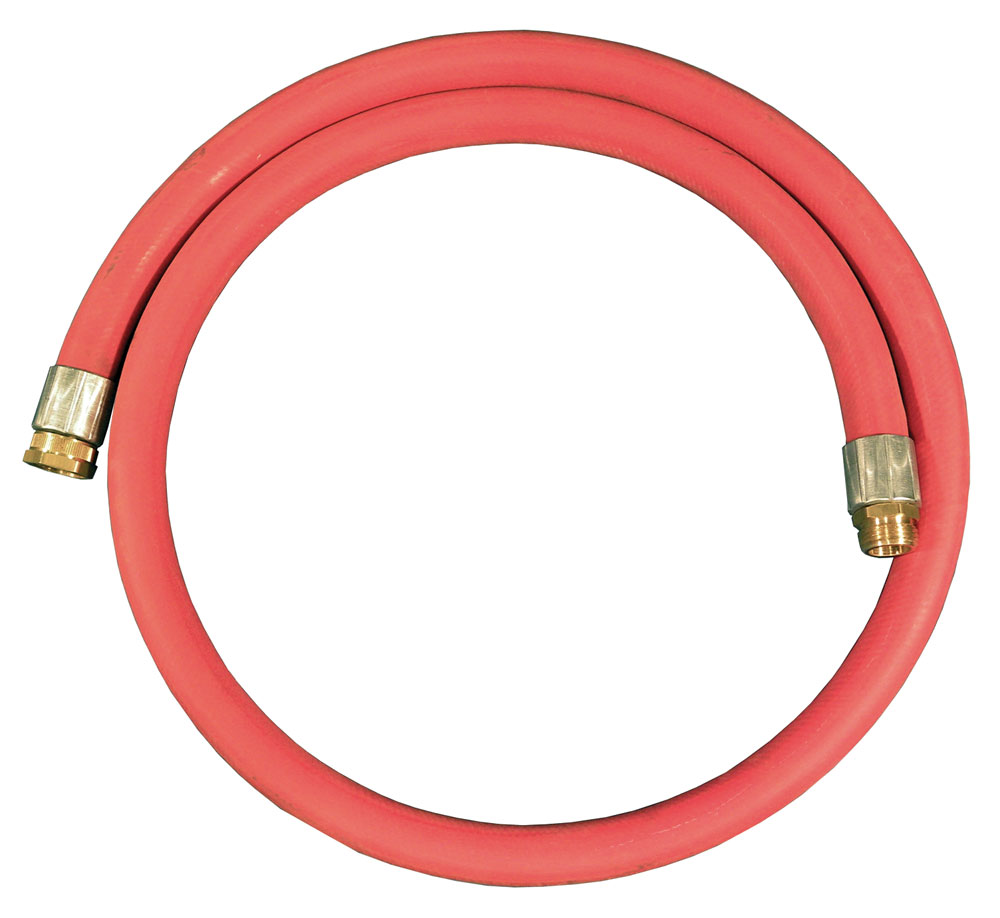

Hose

 CB213001

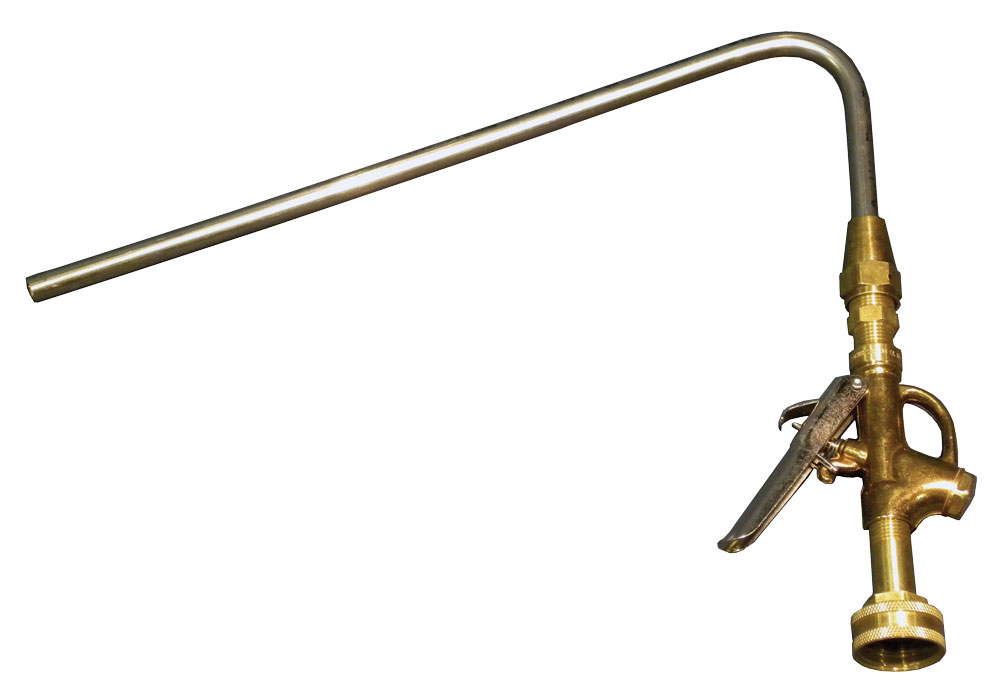

Nozzle
overall dimension
length X width x height		 material approximate shpg. wt. model no.
24" x 24" x 66" Stainless steel 200 lbs cb101001
30" x 30" x 66" Stainless steel 215 lbs CB101002
36" x 36" x 66" Stainless steel 230 lbs cb101003
head flushing nozzle - 3 lbs CB213001
hose for head flushing nozzle - 3 lbs CB210001
Printable PDF literature on the Flushing Cabinet - Click here.     PDF Literature on Head Flushing Cabinet Distributed     PDF Literature on Lander, Spreader & Tree Link to Adobe Reader
