500-LB STAINLESS STEEL TRUCK
TKS05001

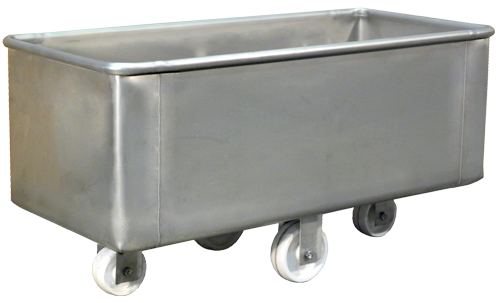

TKS05001 - 500 Lb Standard Truck


TKS11002

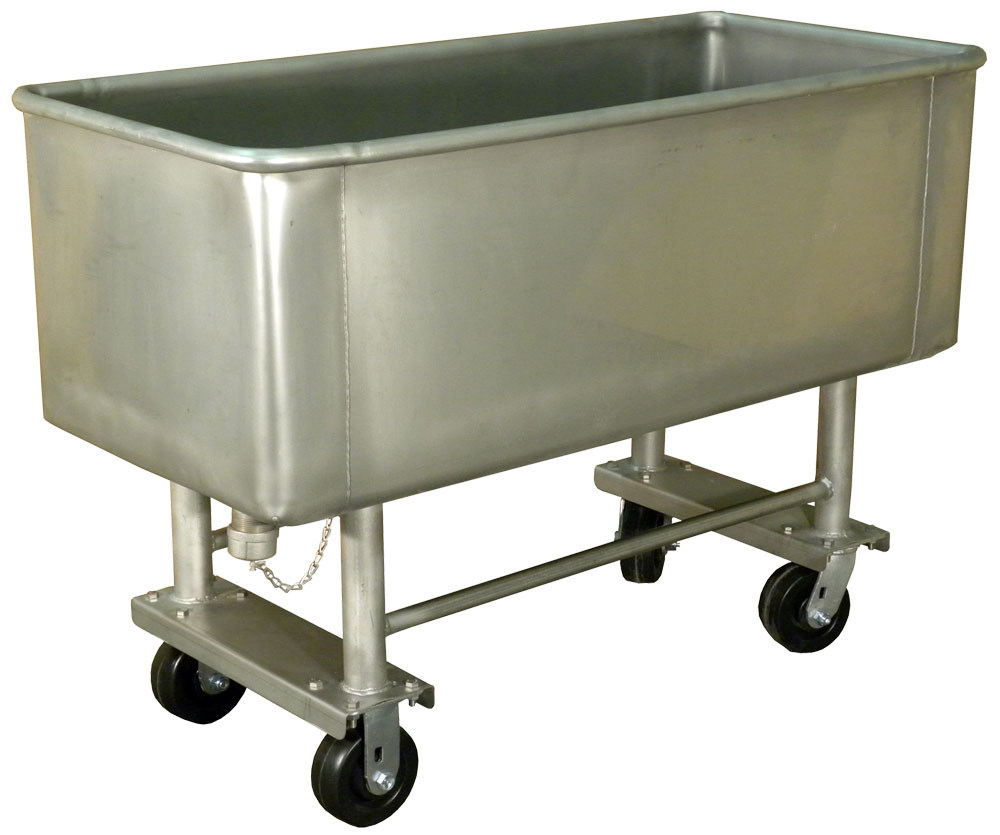

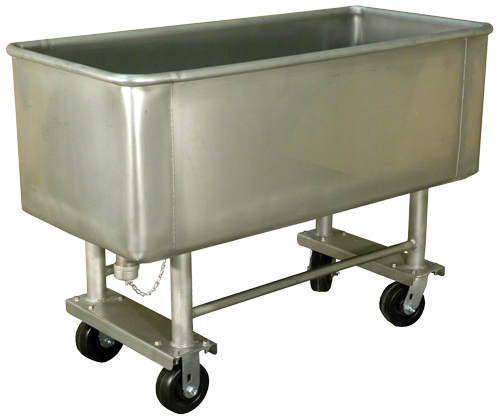

TKS05003 - 500 Lb Raised Truck
Like our larger trucks we've manufactured these 500-LB Trucks with 14 gauge T-304 Stainless Steel and added solid rod reinforcement in the top ends and corners for added strength. Interior welds are Tig welded and glass bead blasted smooth. The exterior is Mig welded for added strength. All Sanitary corners have a smooth 1" radius for easy cleaning.

Options:
Drain & Cap
overall dimension
width x length X Depth x O.A.H.		 Features load capacity approximate shpg. wt. model no.
21-1/2" x 44" x 16" x 22-1/2" - 500-lbs 80 lbs tks05001

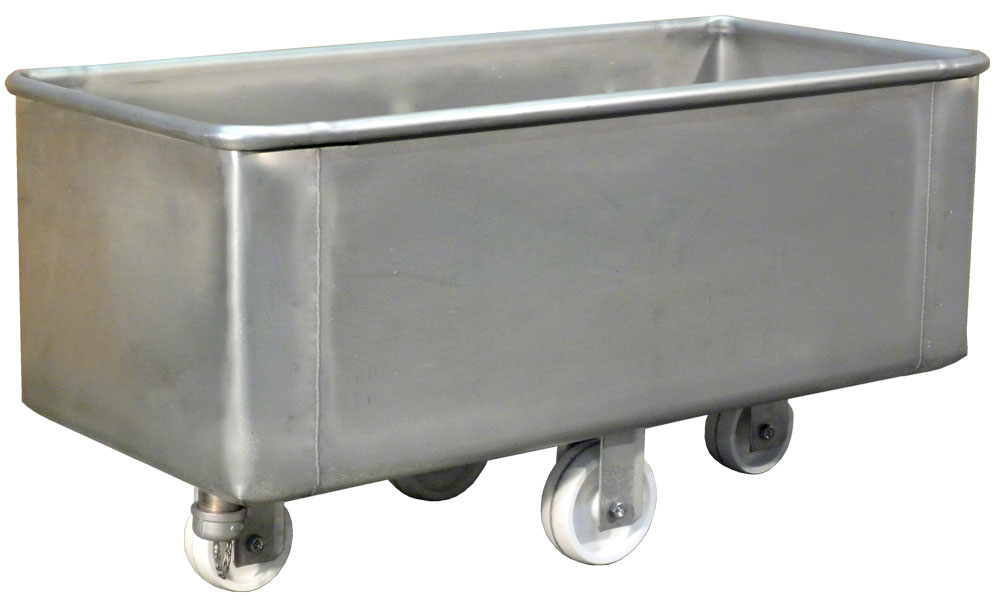

21-1/2" x 44" x 16" x 22-1/2" Drain & Cap 500-lbs 80 lbs tks05002

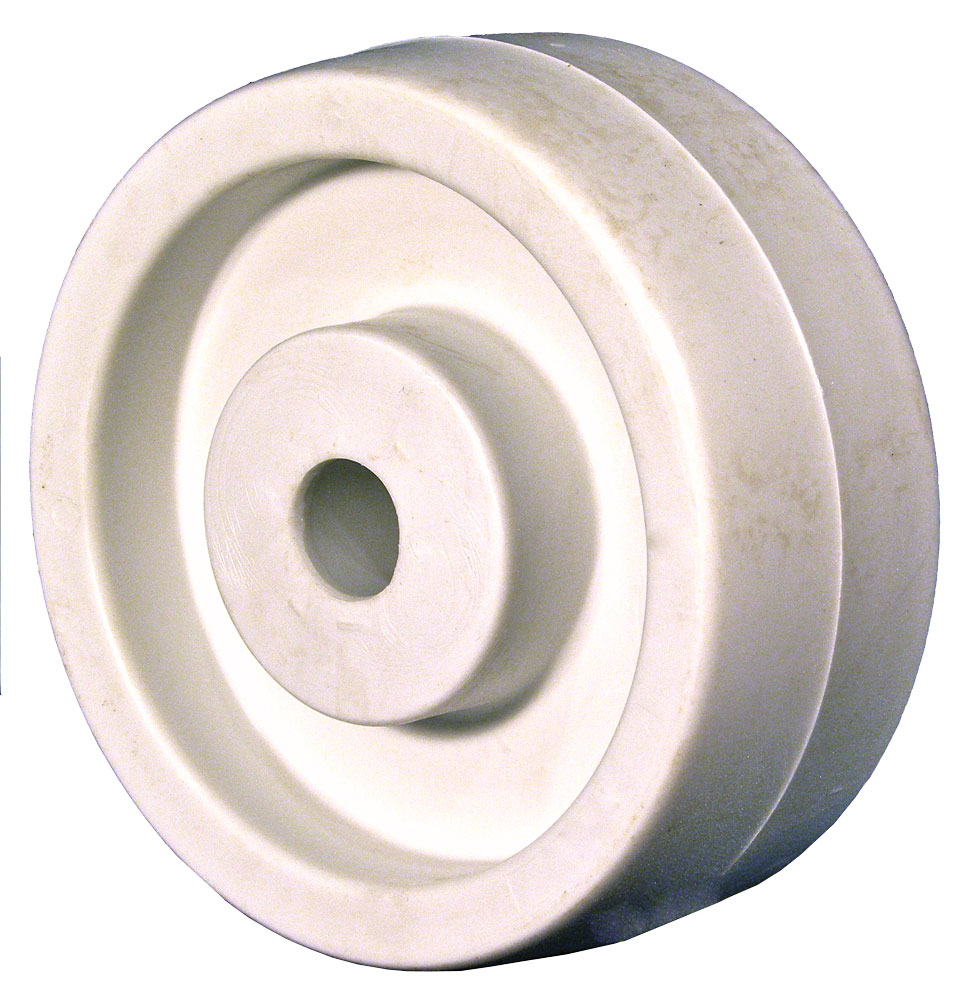

5" x 2" end wheel - - 2 lbs wc1pw003
6" x 2" Center Wheel - - 2 lbs Wc1pw001
REPL. Axle assembly, 1/2” x 3”, SS w/zerk fitting & delrin Bushing   WC301003
21-1/2" x 44" x 16" x 32" drain & Cap 500-lbs 99 lbs tks05003

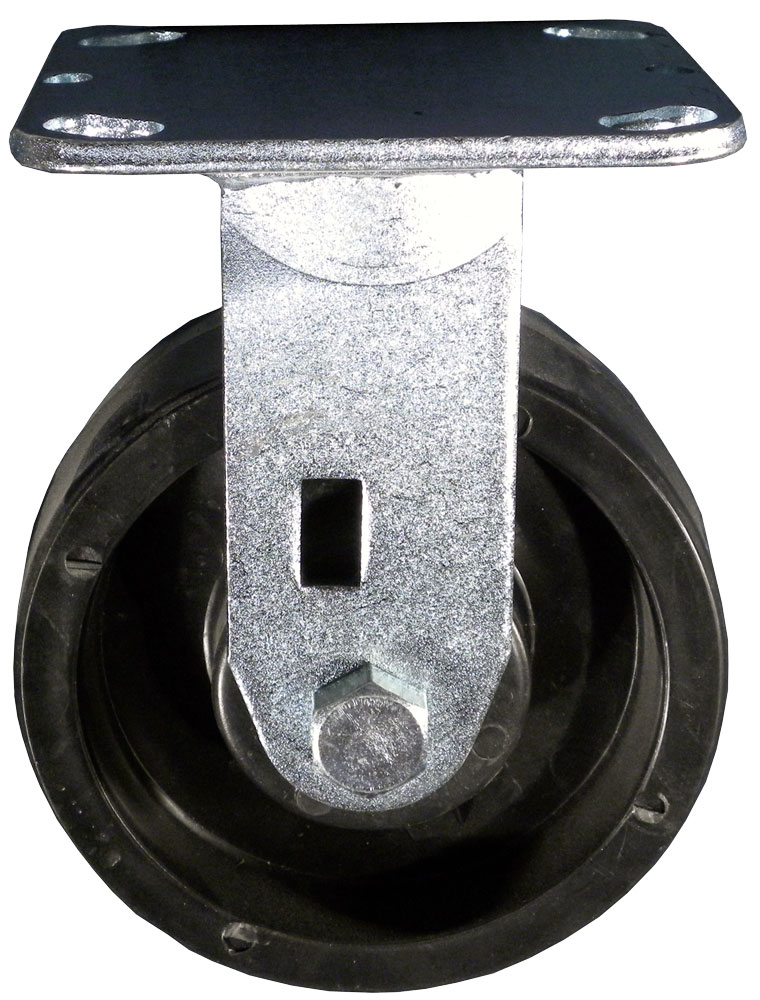

5" x 2" Rigid Caster - - 6 lbs WC202005

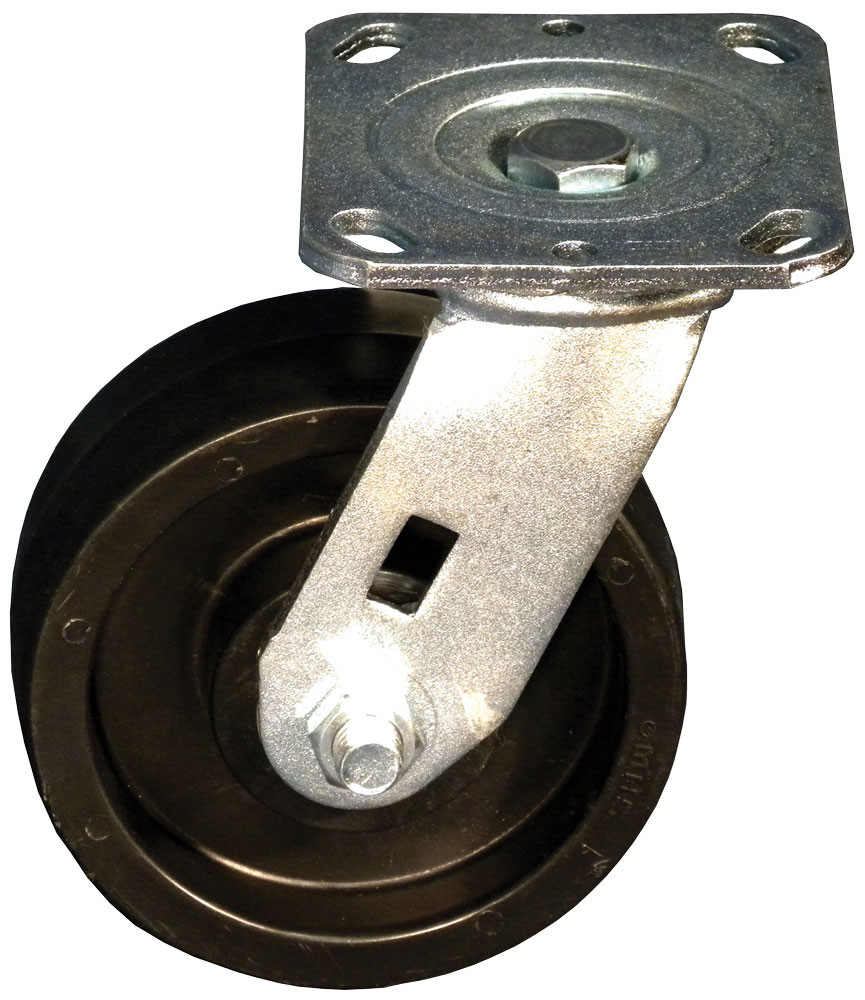

5" x 2" swivel caster - - 6 lbs WC201003
