800-LB STAINLESS STEEL TRUCK

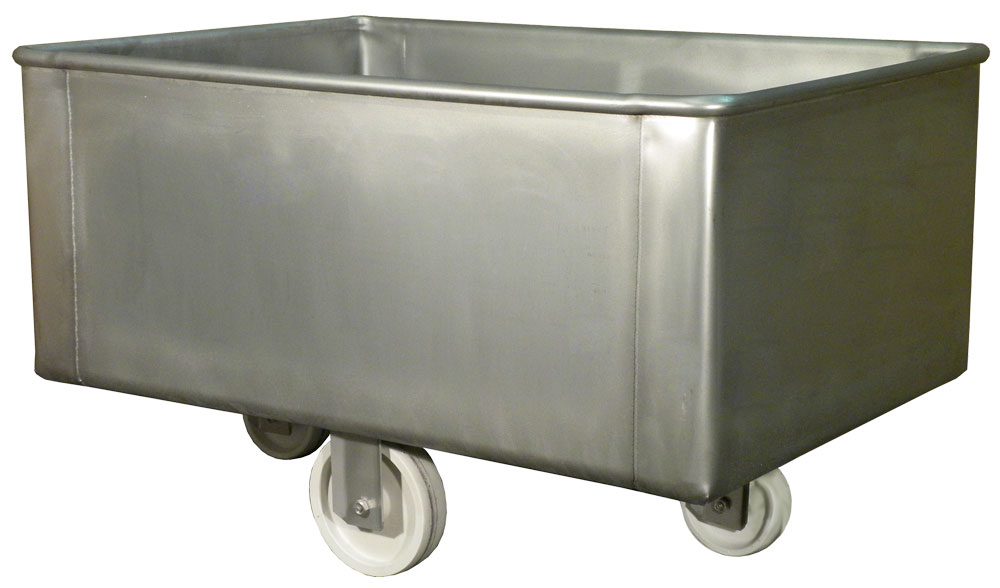

TKS08001

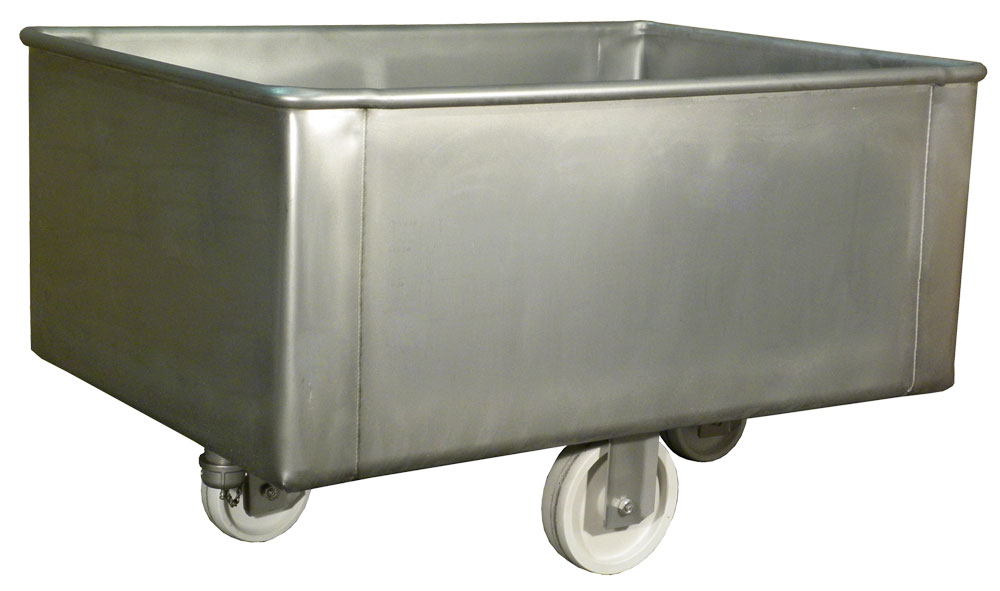

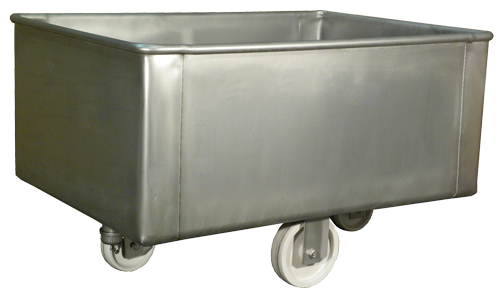

TKS08002 - Standard Style


TKS08004

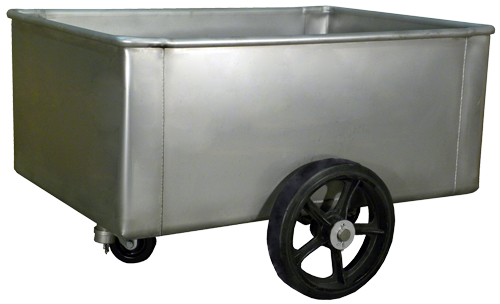

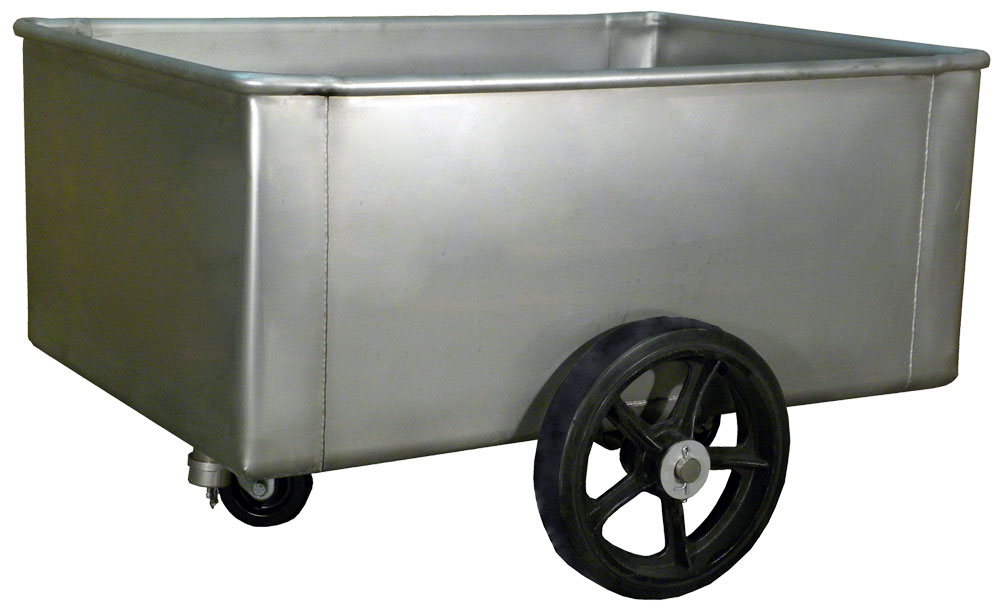

TKS08004 - Center Load Style
Constructed from sturdy 14 gauge T-304 Stainless Steel these Trucks have an optional 1-1/2" NPT threaded drain and cap. We've added solid rod reinforcement in the top ends and corners for added strength. Interior welds are Tig welded and glass bead blasted smooth. The exterior is Mig welded for added strength. All Sanitary corners have a smooth 1" radius for easy cleaning.

Options:
Drain & Cap
overall dimension
width x length X Depth x o.a.h.		 Features load capacity approximate shpg. wt. model no.
31" x 46" x 19" x 27-1/2" - 800-lbs 80 lbs TKS08001
31" x 46" x 19" x 27-1/2" Drain & Cap 800-lbs 80 lbs tks08002

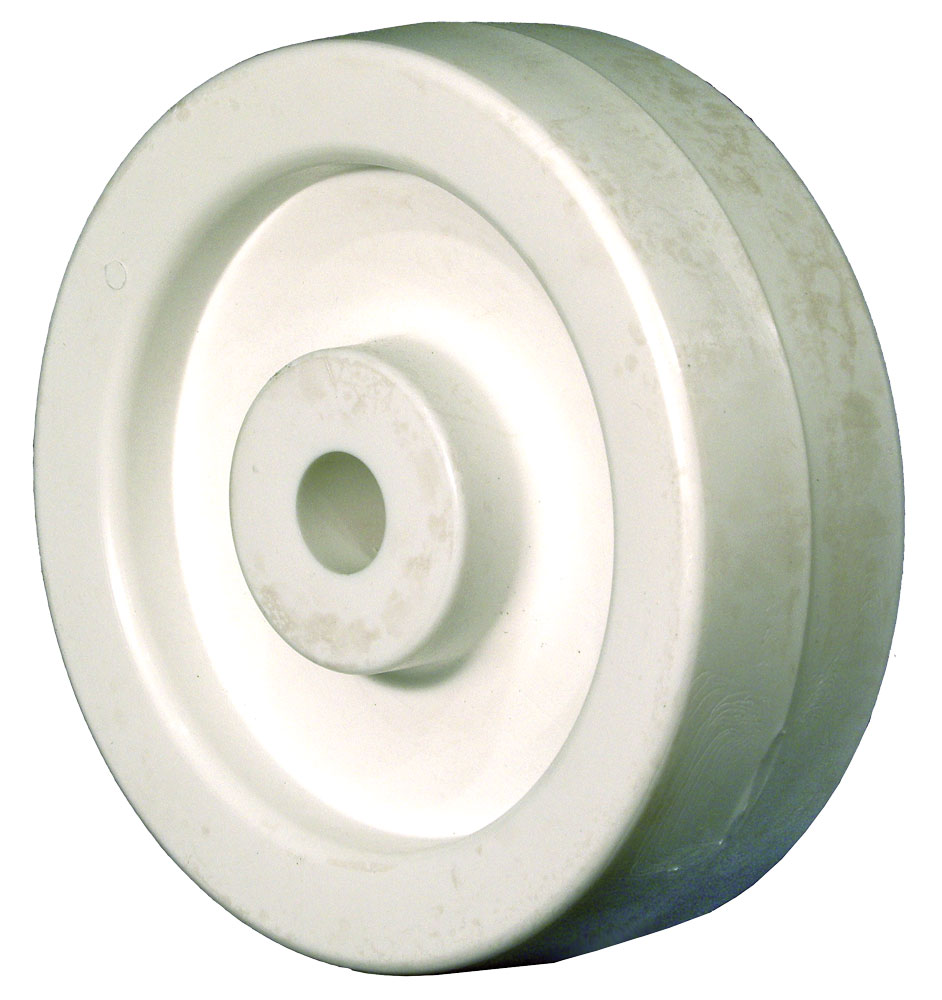

6" x 2" end wheel - - 2 lbs wc1pw001

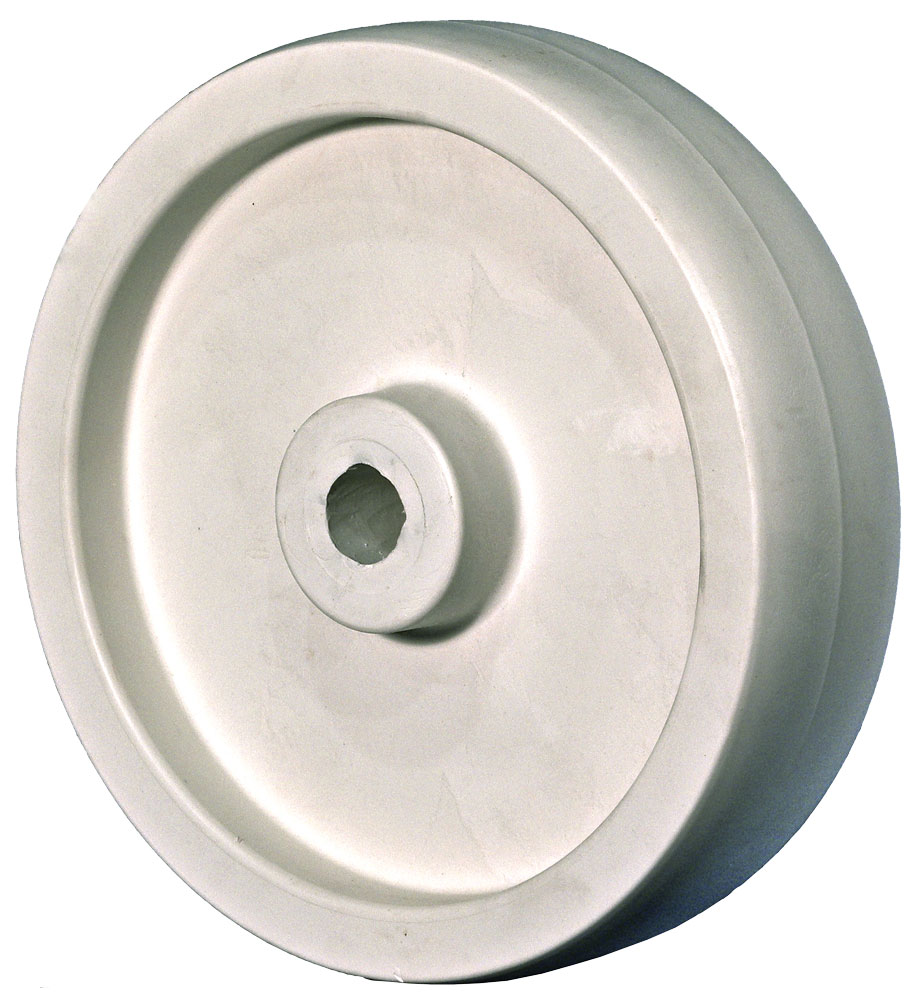

8" x 2" Center Wheel - - 2 lbs Wc1pw002

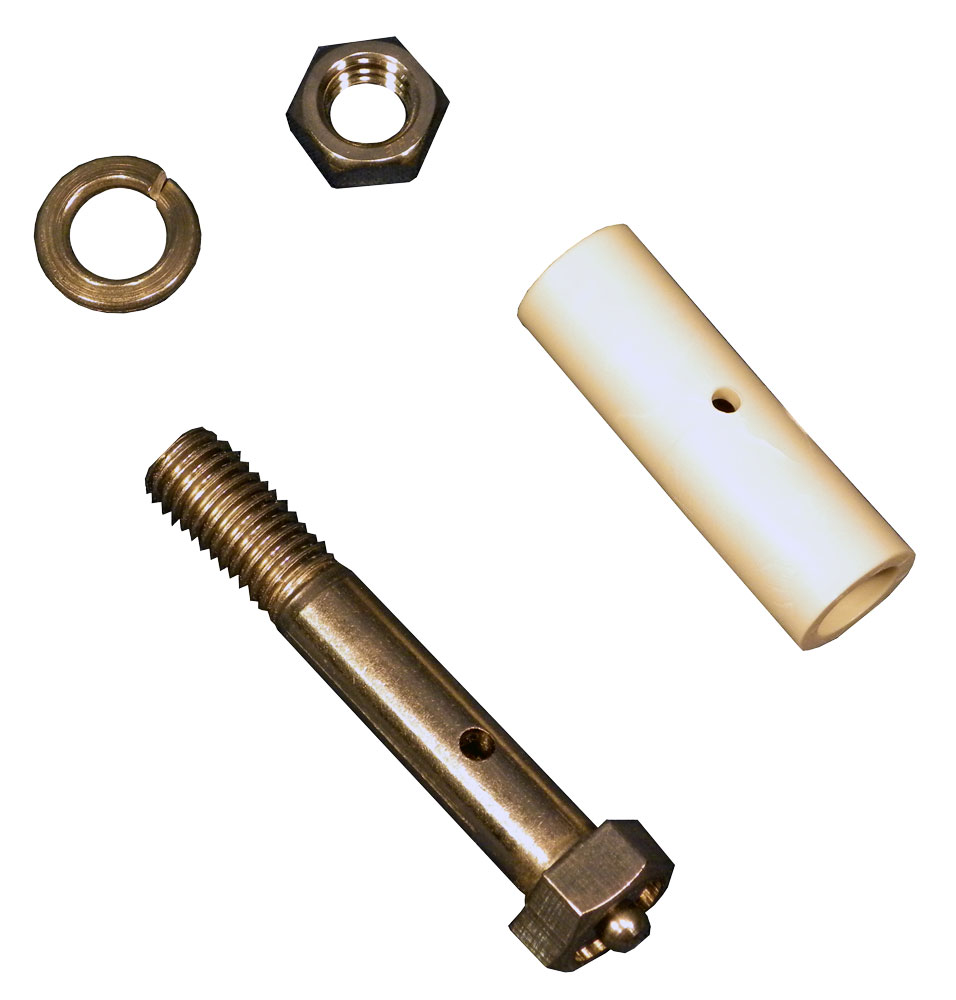

Repl. Axle assembly, 1/2” x 3”, SS w/zerk fitting & delrin Bushing   WC301003

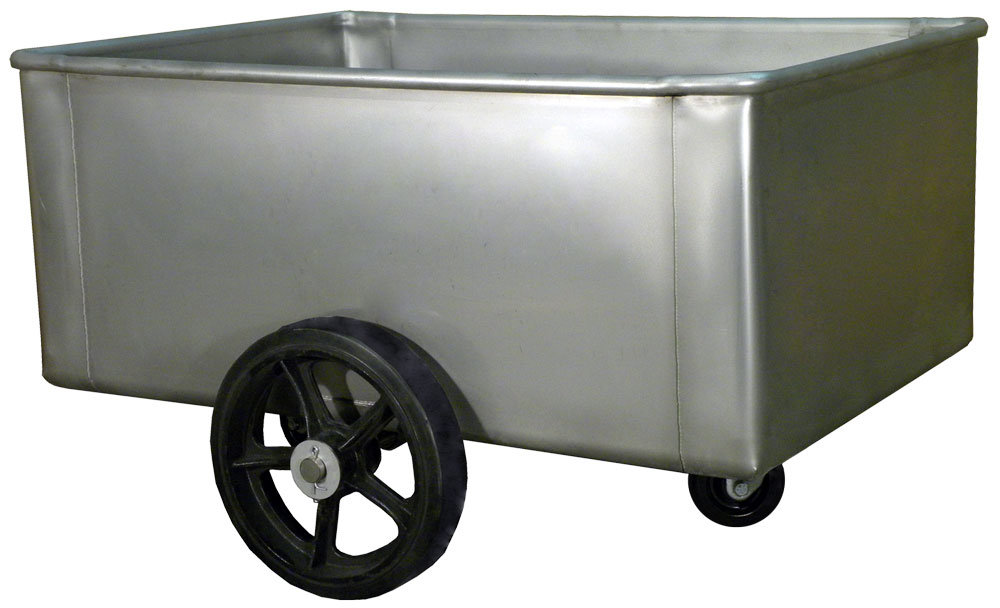

31" x 46" x 19" x 26-1/2" - 800-lbs 168 lbs tks08003
31" x 46" x 19" x 26-1/2" drain & Cap 800-lbs 168 lbs TKS08004

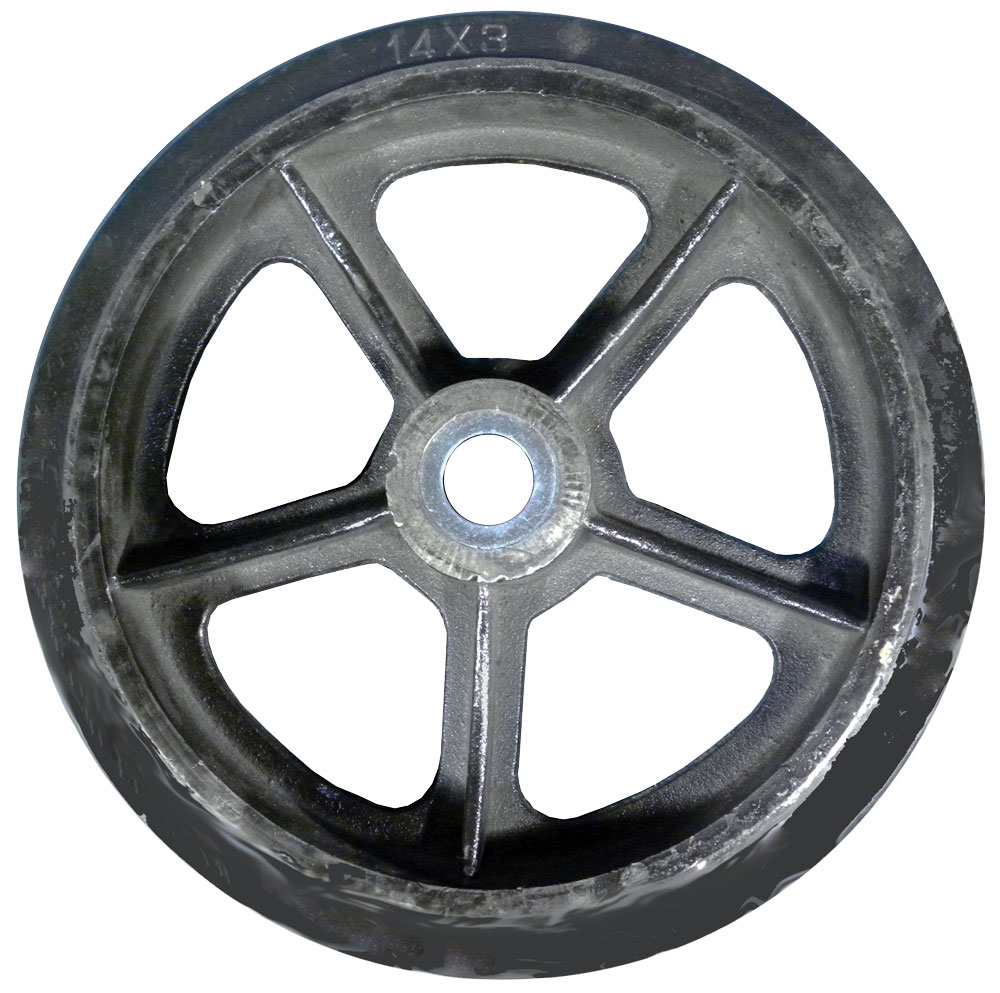

14" x 2.5" Center Wheel mold-on rubber - 25 lbs wc1mt001

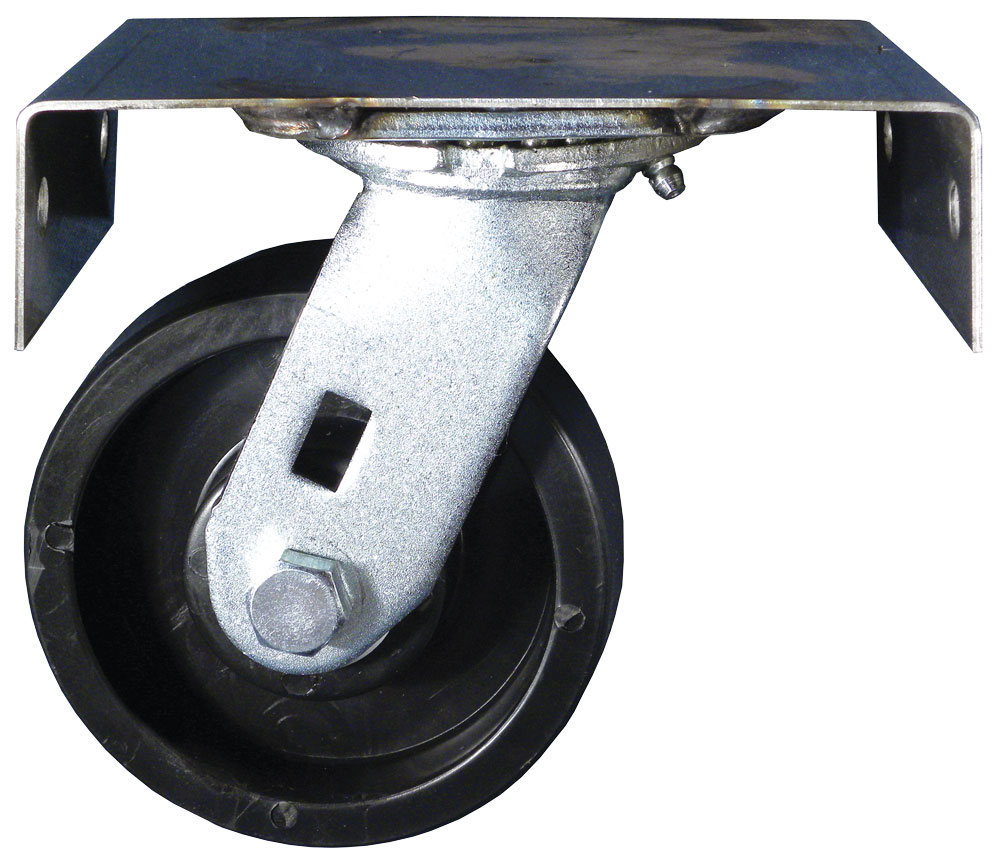

5" x 2" Swivel Caster - - 7 lbs WC201001
